Stamping Parts
Ensuring excellence with customized on-line CCD inspection
Our customized on-line CCD inspection system ensures the highest standards of quality through various features. This includes cosmetic inspection and dimension measurement to ensure each part meets precise specifications. Our system automatically detects defects and immediately stops the production process, triggering an alarm for prompt review. Additionally, our system calculates the quantity of defective parts, enabling precise monitoring and control of the production.
Our capabilities
Design
- 2D/3D CAD drawings & models

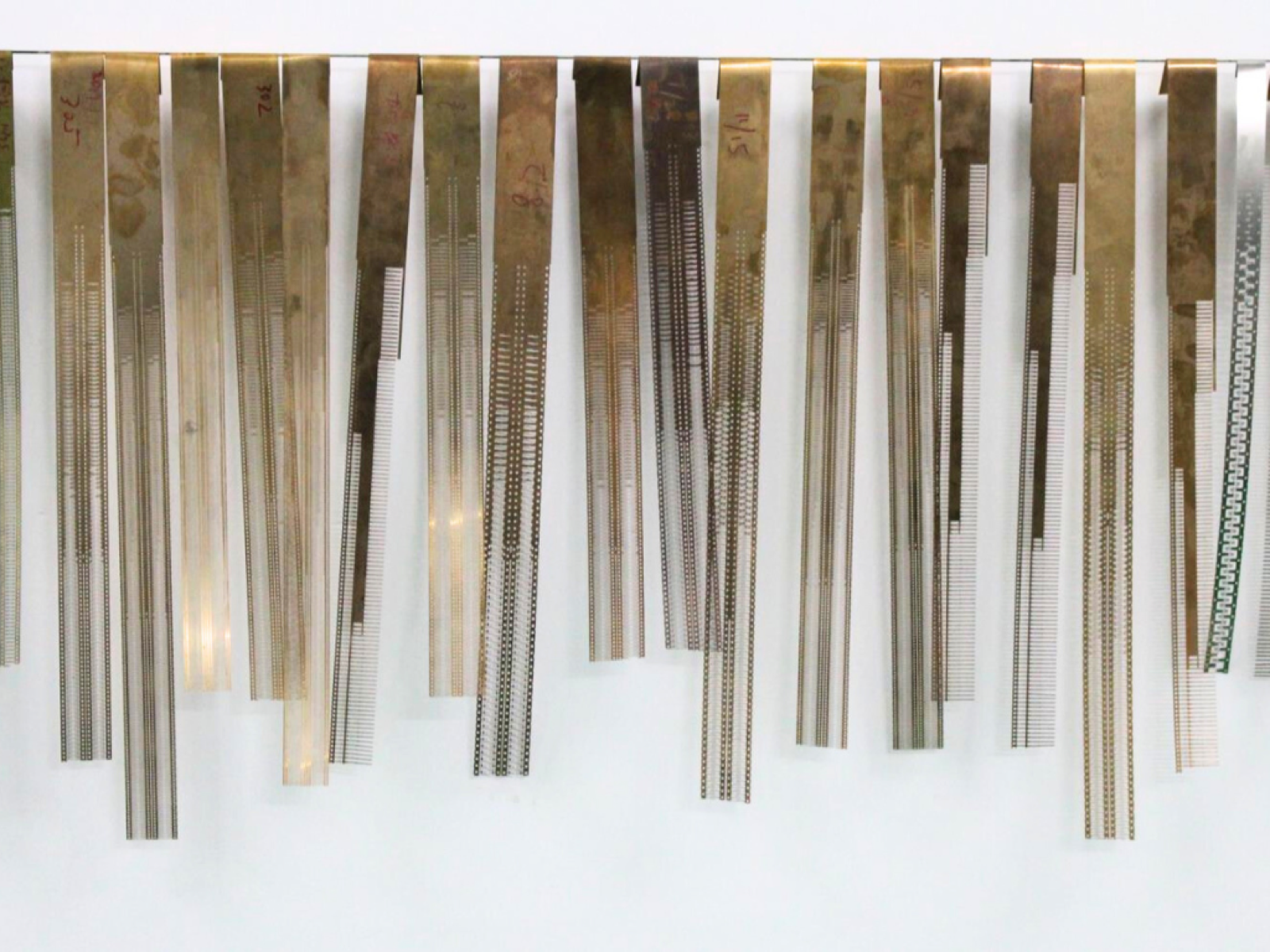

- Strip layout optimisation
- Design for Manufacturability (DFM)
- FMEA / DFMEA

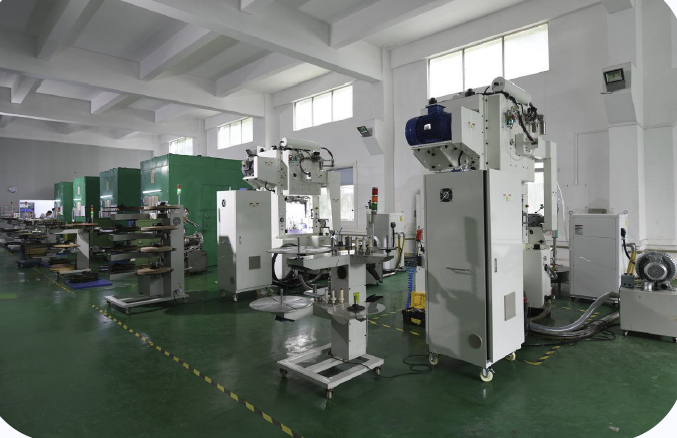

Production
- Reel-to-Reel and Reel-to-Bulk stamping
- From prototype to mass-production tools
- 0.04 mm to 3.5 mm raw material thickness
- Various copper alloys, steels and stainless steels

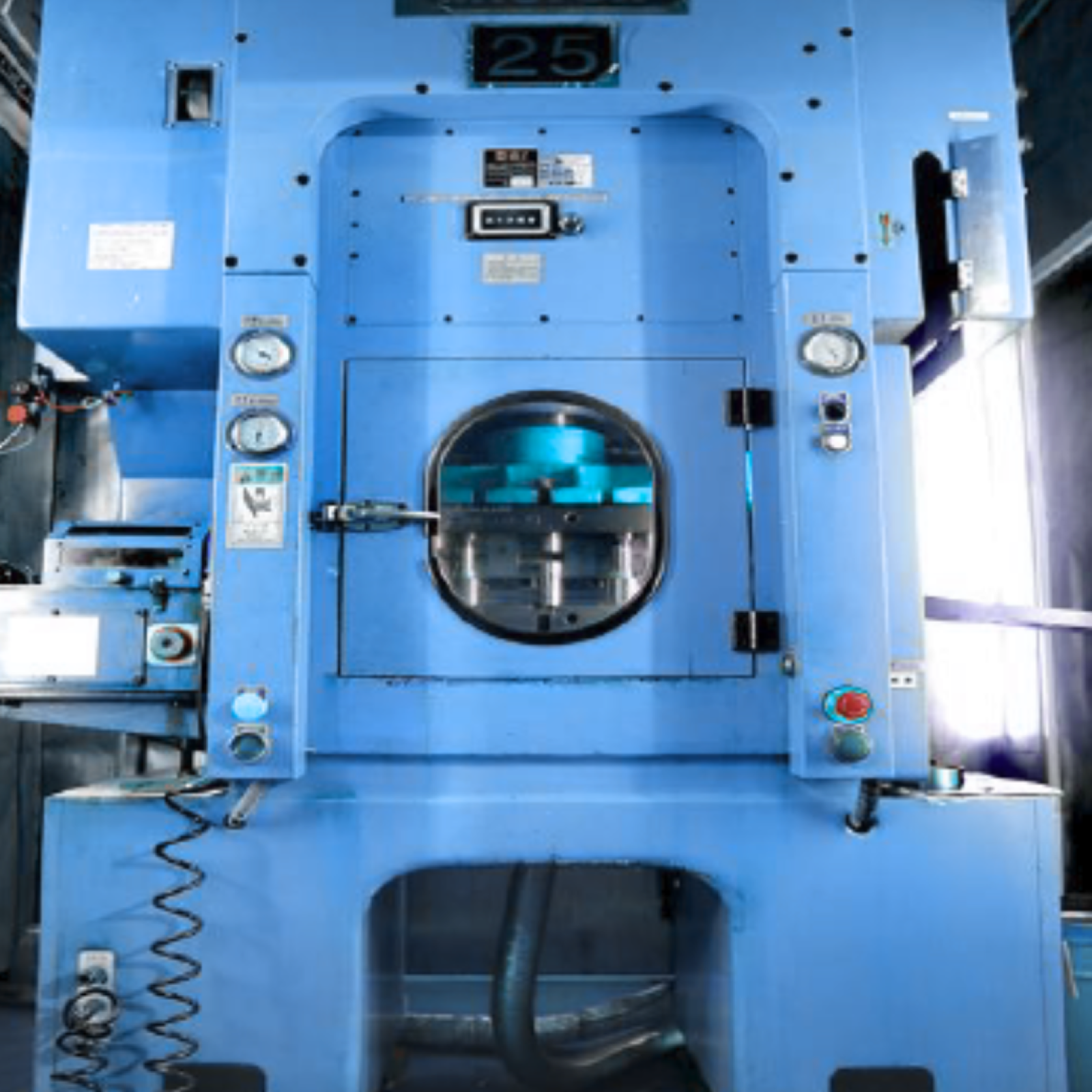

- Pressing tonnage from 16 to 280 ton
- Stamping speed up to 900 SPM
- Pre-production services (plating, slitting)
- Post-production (thermal treatment, de-burring, plating, passivation)
Tool types
- Prototype / single-stage
- Multi-stage
- Progressive tools/dies
- In-tool riveting
- In-tool tapping
- High-speed (up to 900 SPM)
- Wire forming
Capacities fixture design: 3D Stamping / Die casting.
A connector system that offers one of the highest levels of contact reliability
Next-Gen 1.0mm has been specially designed for difficult assembly conditions, whether it be the speed and force of assembly or an awkward cable position. Special alignment guides prevent incorrect mating.
The plastic housing has an improved design that reliably protects against damage.
